GUARNIZIONE PISTONE PDS 175125 31,75X44,45X19,05 PSE
| Price: |
|
|---|---|
| Item code: | 33PDS00031044 |
| Weight: | 0,020 Kg |
| Quantity: |
Users feedback
Description

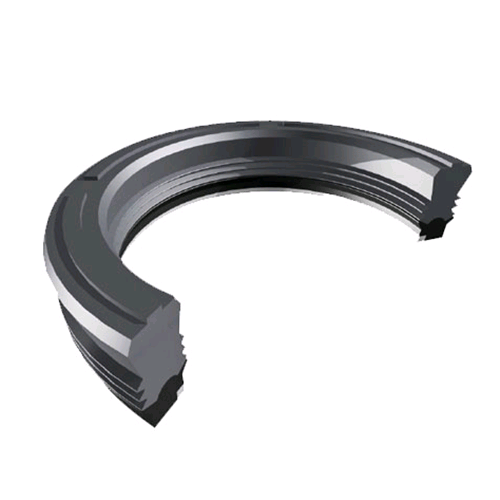

Seals for PDE Piston composed by 5 elements double cloth rubber + POM effect: they are interchangeable with Gaskets for DSM Piston - K42.The PDE gasket is particularly suitable for sealing on pistons of double-acting hydraulic cylinders, for earthmoving machinery where heavy operating conditions exist such as misalignment and/or vibration at high pressures. It consists of 5 elements: a central part of NBR seal, two bases of support made of rubber (or, alternatively, thermoplastic) and two guide rings made of acetal resin. In addition to the standard version, it can be made with special material suitable for high temperatures.
GENERAL CHARACTERISTICS:
Easy to install
High resistance to abrasion
High resistance to extrusion
Low value of deformation
PDE: composed of 5 elements double velocity effect' m/s 0,5 Material Rubber + pom Temperature °C -30 +110 Pressure mpa 70
