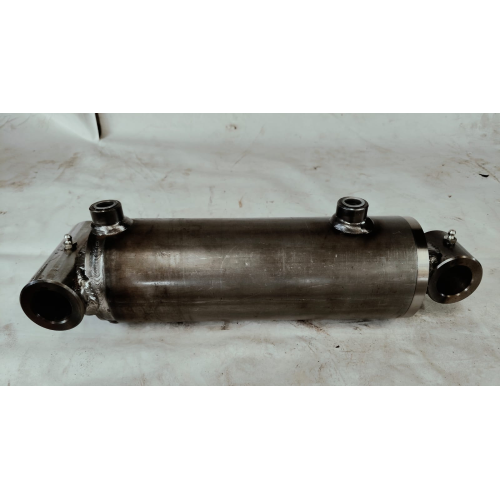

CILINDRO OLEODINAMICO DOPPIO EFFETTO 250 BAR ALESAGGIO 80/95 STELO 50 CORSA 160 MM CON BOCCOLE SALDATE SUL FONDELLO E SU ASTA.
| Price: |
|
|---|---|
| Item code: | XEA082BB050B0160 |
| Weight: | 16,000 Kg |
| Quantity: |
Users feedback
This item includes:
0.265 MT - TUBO LUCIDO 95X80 ST52.3 DIN2393 ISO H9
1 PZ - END-PLUG WELDED 80X95
1 PZ - GUARNIZIONE TPM 314236 80X60X22.4
1 PZ - O.RING 220 3.53 d34.52
1 PZ - THREADED PISTON CTF TYPE 80 33X2
1 PZ - RASCHIATORE GHK 196228 50X58.6X5.3- 1 PZ - O.RING 149 2.62 d71.12
- 1 PZ - O.RING 845 3.53 d73.03 (176)
1 PZ - GUARNIZIONE TSE 236196 50X60X8
1 PZ - HEAD BUSH CG TYPE 80X50
0.283 MT - ASTA CROMATA DA 50 C45 SAE1045 25MICRON
1 PZ - BUSH TO WELD 50X30.5X55 F5.5- 1 PZ - BUSH TO WELD 50X30.5X55 F5.5
2 PZ - THREADED PORT 3/8"
