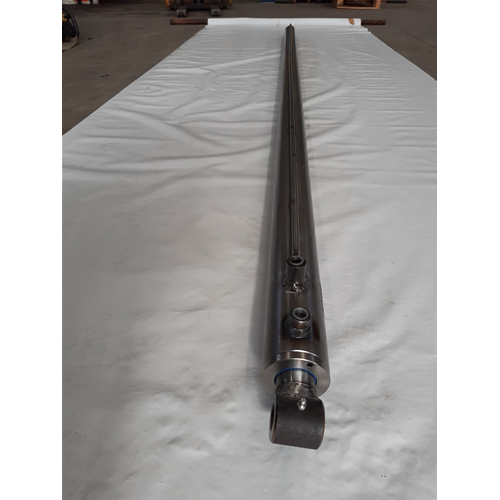

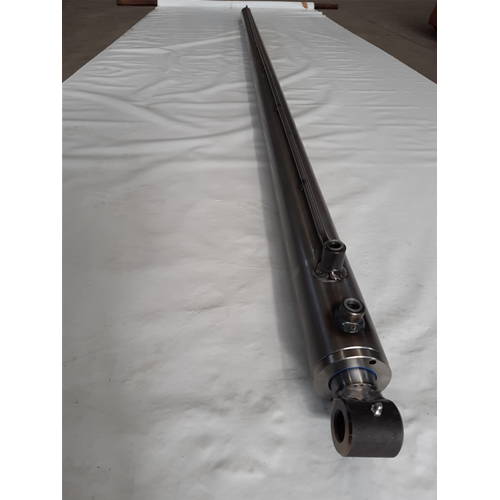

CILINDRO OLEODINAMICO DOPPIO EFFETTO 250 BAR ALESAGGIO 70/80 STELO 45 CORSA 2310 MM
| Price: | Prezzi a richiesta |
|---|---|
| Item code: | XEB070BA045H2310 |
| Weight: | 60,000 Kg |
| Quantity: |
Users feedback
This item includes:
1 PZ - THREADED PORT 3/8"
1 PZ - BLIND THREADED PORT 3/8"
3 MT - TUBO ACCIAIO RICOTTO 12X10X1 DIN 1630
2.514 MT - TUBO LUCIDO 80X70 ST52.3 DIN2393 ISO H9
2.545 MT - ASTA CROMATA DA 45 C45 SAE1045 25MICRON
1 PZ - O.RING 215 3.53 d26.57
1 PZ - GUARNIZIONE TPM 275196 70X50X22.4
1 PZ - PISTON CT TYPE 70X27
1 PZ - DADO AUTOBLOCCANTE FILETTO 27X2 ALTO
1 PZ - RASCHIATORE GHK 177208 45X53.6X5.3- 1 PZ - O.RING 145 2.62 d64.77
- 1 PZ - O.RING 839 3.53 d63.50 (167)
1 PZ - GUARNIZIONE TSE 216177 45X55X8
1 PZ - HEAD BUSH CG TYPE 70X45
1 PZ - END-PLUG WELDED 70X80
1 PZ - BUSH TO WELD 50X30.5X55 F5.5
