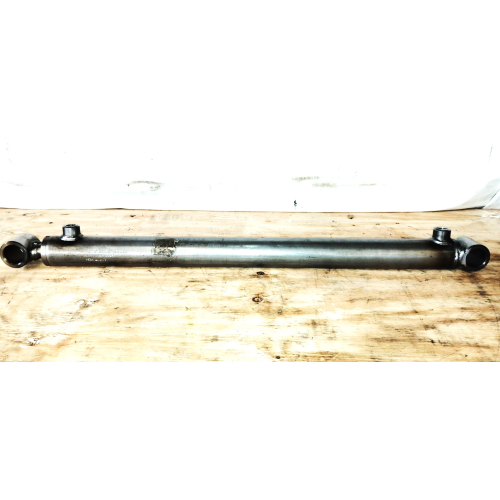

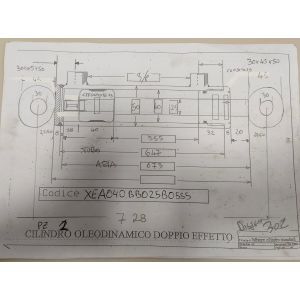

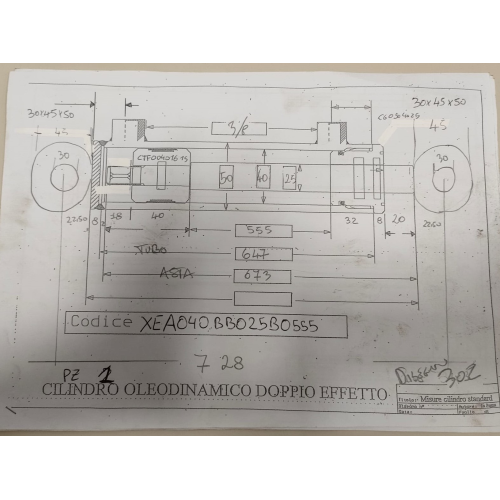

CILINDRO OLEODINAMICO DOPPIO EFFETTO 250 BAR ALESAGGIO 40/50 STELO 25 MM CORSA 555 MM CON BOCCOLA SALDATA SU ASTA E FONDELLO
| Price: |
|
|---|---|
| Item code: | XEA040BB025B0555 |
| Weight: | 7,500 Kg |
| Quantity: |
Users feedback
This item includes:
2 PZ - THREADED PORT 3/8"
1 PZ - RASCHIATORE GHK 098129 25X33.6X5.3
1 PZ - O.RING 126 2.62 d34.60- 1 PZ - O.RING 219 3.53 d32.93
1 PZ - GUARNIZIONE TSE 129098 25X33X6.4
1 PZ - HEAD BUSH CG TYPE 40X25- 1 PZ - O.RING 616 2.62 d15.08 (119)
1 PZ - GUARNIZIONE TPM 157118 40X30X16.4
1 PZ - END-PLUG WELDED 40X50
0.673 MT - ASTA CROMATA DA 25 C45 SAE1045 25MICRON
0.647 MT - TUBO LUCIDO 50X40 ST52.3 DIN2393 ISO H9
1 PZ - THREADED PISTON CTF TYPE 40 16X1.5
2 PZ - BUSH TO WELD 30X60X110
