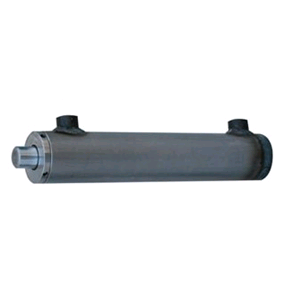

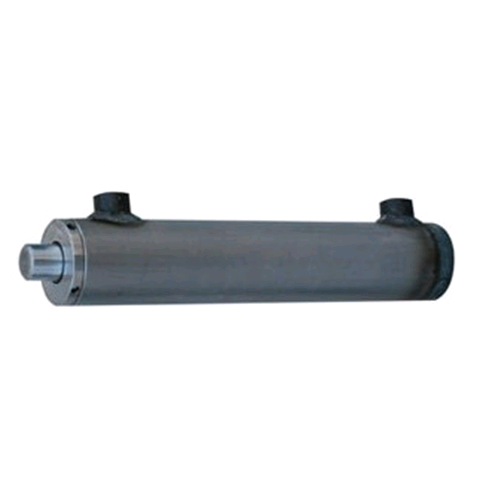

DOUBLE ACTING CYLINDER 60/68 ROD 30 STROKE 100MM
| Price: |
|
|---|---|
| Item code: | XDA060BA030D0100 |
| Weight: | 3,760 Kg |
| Quantity: |
Users feedback
Description
DOUBLE ACTING CYLINDER XD 200 BAR TYPEThe double acting hydraulic cylinders series XD 200 bar with welded endplug and without attachments is particularly required in the mobile and in the agricultural field. Reliability, lightness and reduced total distance are the main characteristics.
This item includes:
1 PZ - THREADED PORT 3/8"
1 PZ - O.RING 142 2.62 d60.00
1 PZ - RASCHIATORE GHK 118149 30X38.6X5.3
1 PZ - GUARNIZIONE TSE 157118 30X40X7.5- 1 PZ - O.RING 832 3.53 d52.40 (156)
1 PZ - GUARNIZIONE TPS/G 236188 60X48X20.5- 1 PZ - O.RING 120 2.62 d25.07
1 PZ - PISTON CTLM TYPE 60X25
1 PZ - HEAD BUSH CGLM TYPE 60X30
0.21 MT - ASTA CROMATA DA 30 C45 SAE1045 25MICRON
0.189 MT - TUBO LUCIDO 68X60 ST52.3 DIN2393 ISO H9
1 PZ - PROTEZIONE FILETTO 3/8'' FEMMINA- 1 PZ - THREADED PORT 1/4"
1 PZ - PROTEZIONE FILETTO 1/4'' FEMMINA
1 PZ - DADO AUTOBLOCCANTE FILETTO 24X2 ALTO
| Accessori | ||||
|---|---|---|---|---|
| Description | Price | Availability | ||
 |
HEAD BUSH CGLM TYPE 60X30 |
|
||
 |
PISTON CTLM TYPE 60X25 |
|
||
Attachments
- pagina_18_catalogo.pdf
pagina_18_catalogo.pdf (1.620,44 KB)
