STROZZATORE BIDIREZIONALE REGOLABILE 1/2'' VRB 030

STROZZATORE BIDIREZIONALE REGOLABILE 1/2'' VRB 030STROZZATORE BIDIREZIONALE REGOLABILE 1/2'' VRB 030STROZZATORE BIDIREZIONALE REGOLABILE 1/2'' VRB 030
Price:

65,66

Item code: VSG515300000
Weight: 0,580 Kg
Quantity:

Users feedback

Description

Use
Valve is used to adjust the speed of an actuator in both directions. Not being compensated to the pressure, the flow adjustment depends on pressure and oil viscosity.
Materials and characteristics
Body and shirt: galvanized steel
Internal parts: hardened and ground steel Seals: BUNA N standard
Tenuta: for mating. Minor leakage with closed valve
Mounting

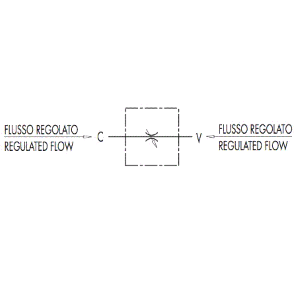

Connect V to C and the actuator to set.
When used on cylinders with safety valve, VRB to be mounted between the cylinder and valve block.
The flow regulation is done by turning the outer sleeve: turning clockwise increases the flow and vice versa. After adjusting the flow, return lock the nut in position so as to maintain the set values ??even in presence of vibrations.
