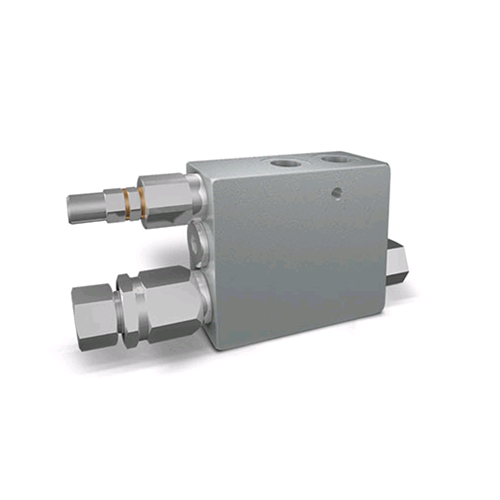

VALVOLA PER RIBALTAMENTO ARATRO 60/80 DOPPIO EFFETTO
| Price: |
|
|---|---|
| Item code: | NGH-VRAP0290 |
| Quantity: |
Users feedback
Description
Valve realized for use on cylinders for reversible plows, so as to obtain the automatic reversal of the flow of oil and therefore the motion of the hydraulic cylinder suitable to cause the rotation of the plow.The reversal of the piston gear is made by a pressure relief valve differential pressure exactly at the point he died plow, developing more power and speed. This valve can also be mounted on heavy and unbalanced plows with cylinders having the following internal diameters: 40/50, 60/80, 80/100, 100/110 and 110/130 mm.
Materials and features
Body: galvanized steel
Internal parts: hardened and ground steel thermally
Seals: BUNA N standard
Tightness: cone. Any leakage
The valves are supplied with exchange pressure of 140 Bar: according to the various needs of the exchange pressure can be varied by acting on the pressure regulator.
mounting

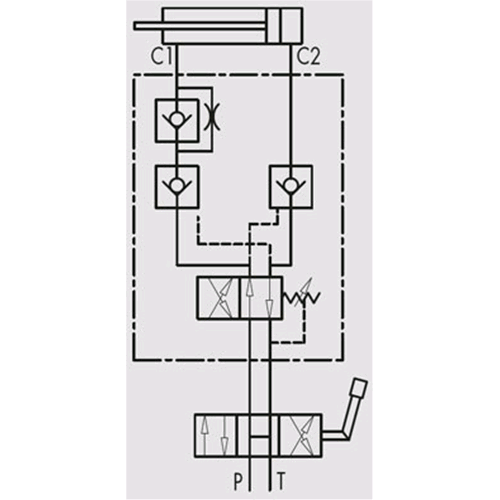

Connect C1 to the cylinder rod, C2 to the bottom and P and T to the machine outlets. Given the particular configuration, these valves can be mounted in line on the hydraulic cylinder or directly fixed to the structure of the plow through the threaded hole made in the body.
