FINECORSA V-FCR 1T-60 NA 3/8''
| Price: | Prezzi a richiesta |
|---|---|
| Item code: | V70900824 |
| Weight: | 1,650 Kg |
| Quantity: |
Users feedback
Description

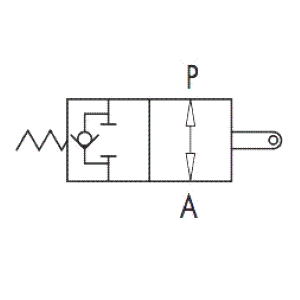

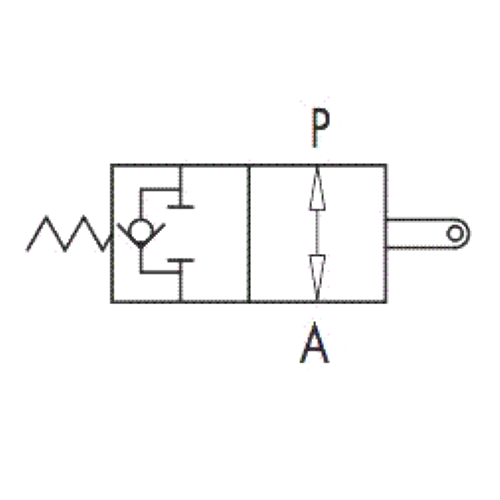

END-STROKE VALVE - NORMALLY CLOSED FCV...NC TYPEThe FCV … NC-series normally closed end-stroke valve is used to enable oil passage in a hydraulic circuit (normally closed valve). Once the slider is set into action, oil flow is free from P to A. It can be used: a) to set the sequence of two actuators; b) as end-stroke valve, where flow is directly connected to the tank.
Materials and characteristics
Body: Steel
Internal parts: hardened and ground, Seals: BUNA N standard, Tenuta: Minor leakage, Immediate opening

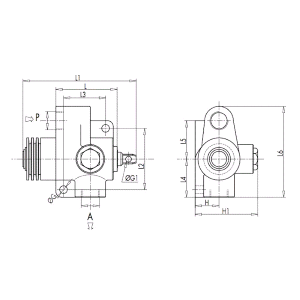

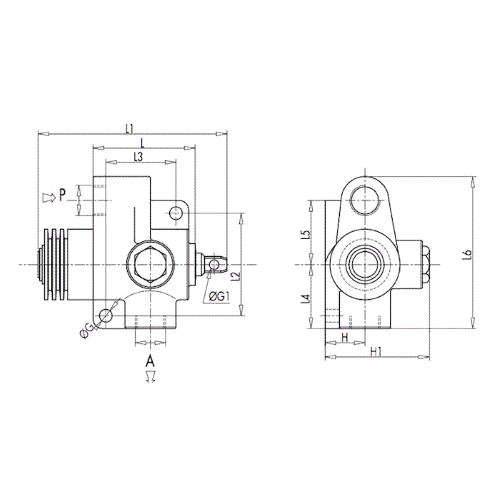

Mounting, Connect P to the line of use and A directly to the drain. The assembly diagram may vary depending on the service required.
