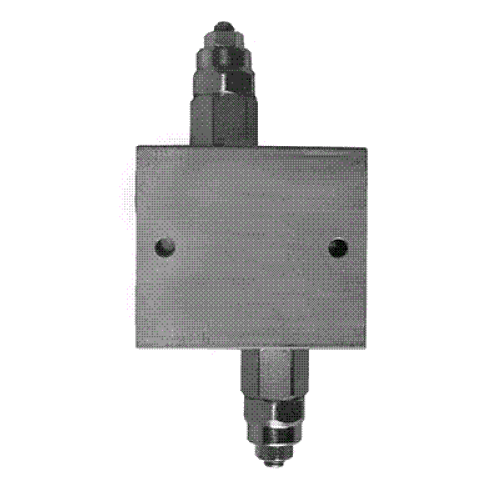

VALVOLA ANTIURTO VAU/DE 1/2'' D.E. PER MOTORE IDRAULICO OMP/OMR
| Price: |
|
|---|---|
| Item code: | V05900500 |
| Weight: | 1,760 Kg |
| Quantity: |
Users feedback
Description
Pressure relief valves Dual cross - onlineUse
Consisting of two pressure relief valves with crossed tank, they are used to limit the pressure in both branches of an actuator or hydraulic motor to a certain setting. They find the best use of both as shock valves is to adjust the two branches of a hydraulic circuit at different pressure value.
Materials and characteristics
Body: steel
Internal parts: hardened and ground
Seals: BUNA N standard
Tightness: minor leakage
Mounting
Connect V1 and V2 or to the actuator / hydraulic motor. Vice versa for the remaining ports V1 and V2. It is recommended mounting the actuator close to limit losses and get a speedy operation. Line mounting.
