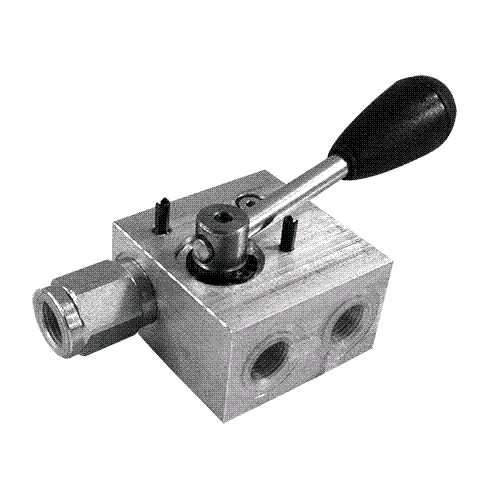

VALVOLA DI BLOCCO SE+DEV.1/2'' VBPSLRD OLE
| Price: |
|
|---|---|
| Item code: | V415031100 |
| Weight: | 1,300 Kg |
| Quantity: |
Users feedback
Description
Valve used to block the cylinder in one direction only, allowing the flow in one direction and blocked in the opposite direction until it is applied to the pilot pressure. For high security offered are particularly suitable for mounting on cylinders stabilizers: closing the tap, after having supported the stabilizers, makes it possible to exclude the risks related to any operating errors.Materials and characteristics
Body: aluminum, Internal parts: hardened and ground
Seals: BUNA N standard
Sealing: zero leakage
Mounting, Connect V1 and V2 to, C1 to the free flow side of the actuator and C2 to the actuator side where you want the seal.
